Labgear LDU608G DigiLink 8-Way Home Distribution Unit

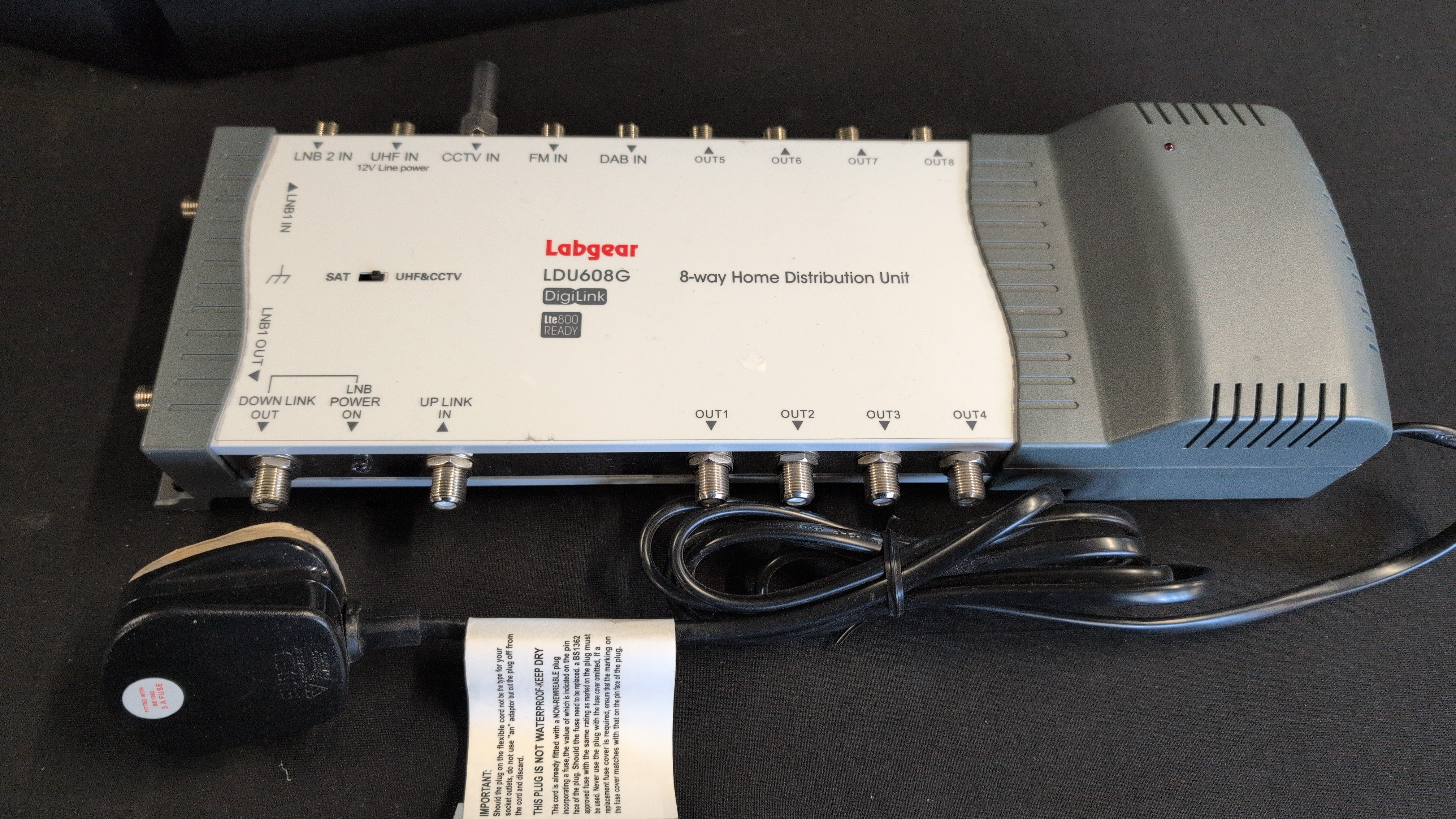

A Labgear LDU608G DigiLink 8-way home distribution unit. This electronic device is designed for the management and distribution of multiple signals including satellite, terrestrial UHF, CCTV, FM, and DAB radio within a domestic property. The unit is housed in a two-tone grey and white plastic casing and features an integrated power supply with a standard UK three-pin plug.

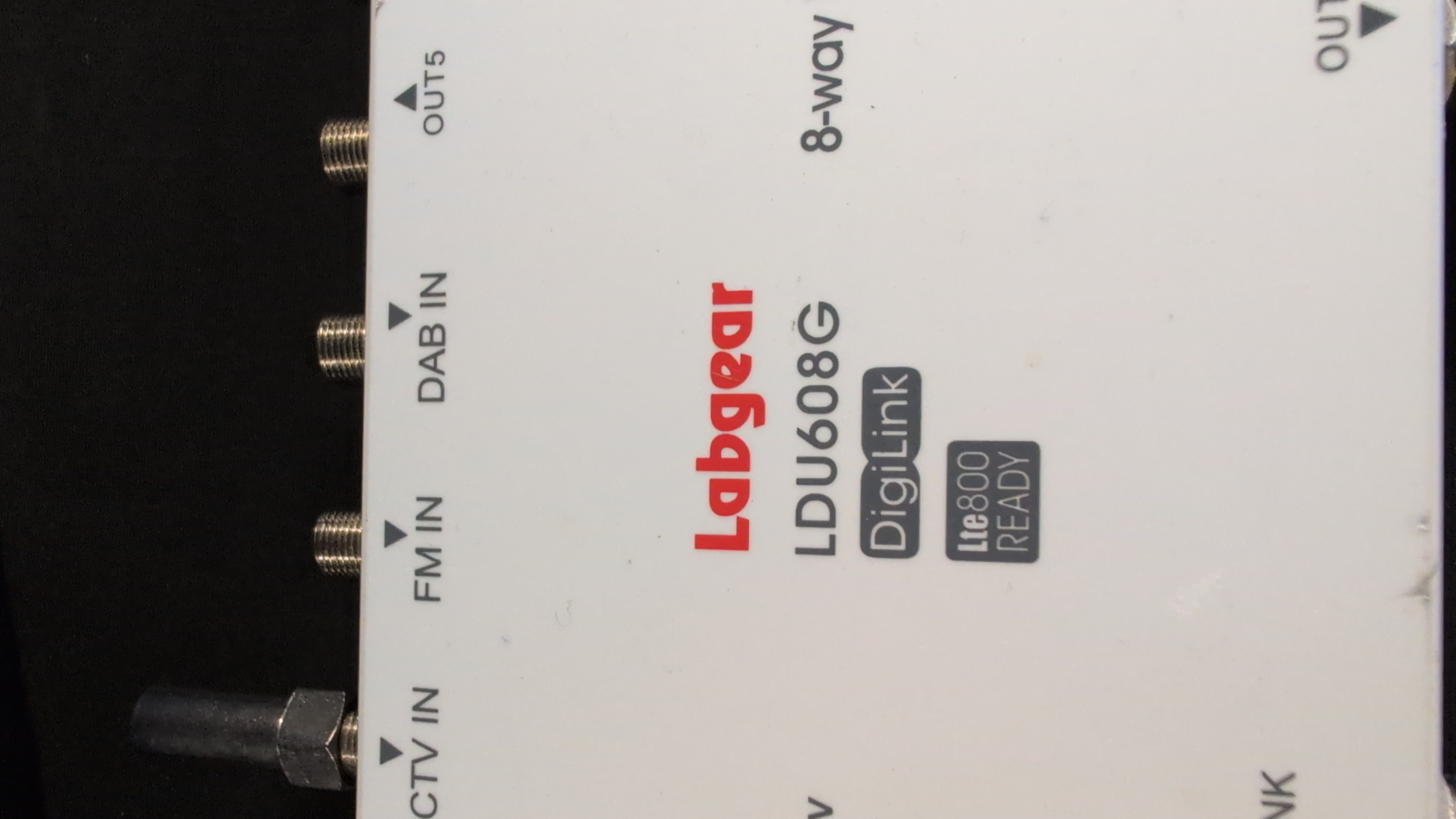

Input connectivity along the upper edge includes ports for LNB 2 IN, UHF IN (with 12V line power capability), CCTV IN, FM IN, and DAB IN. The lower edge provides ports for LNB1 OUT, DOWN LINK OUT, UP LINK IN, and eight primary distribution outputs labelled OUT1 through OUT8. The unit is marked as Lte800 READY, indicating built-in filtering to mitigate interference from 4G mobile signals, and is DigiLink compatible.

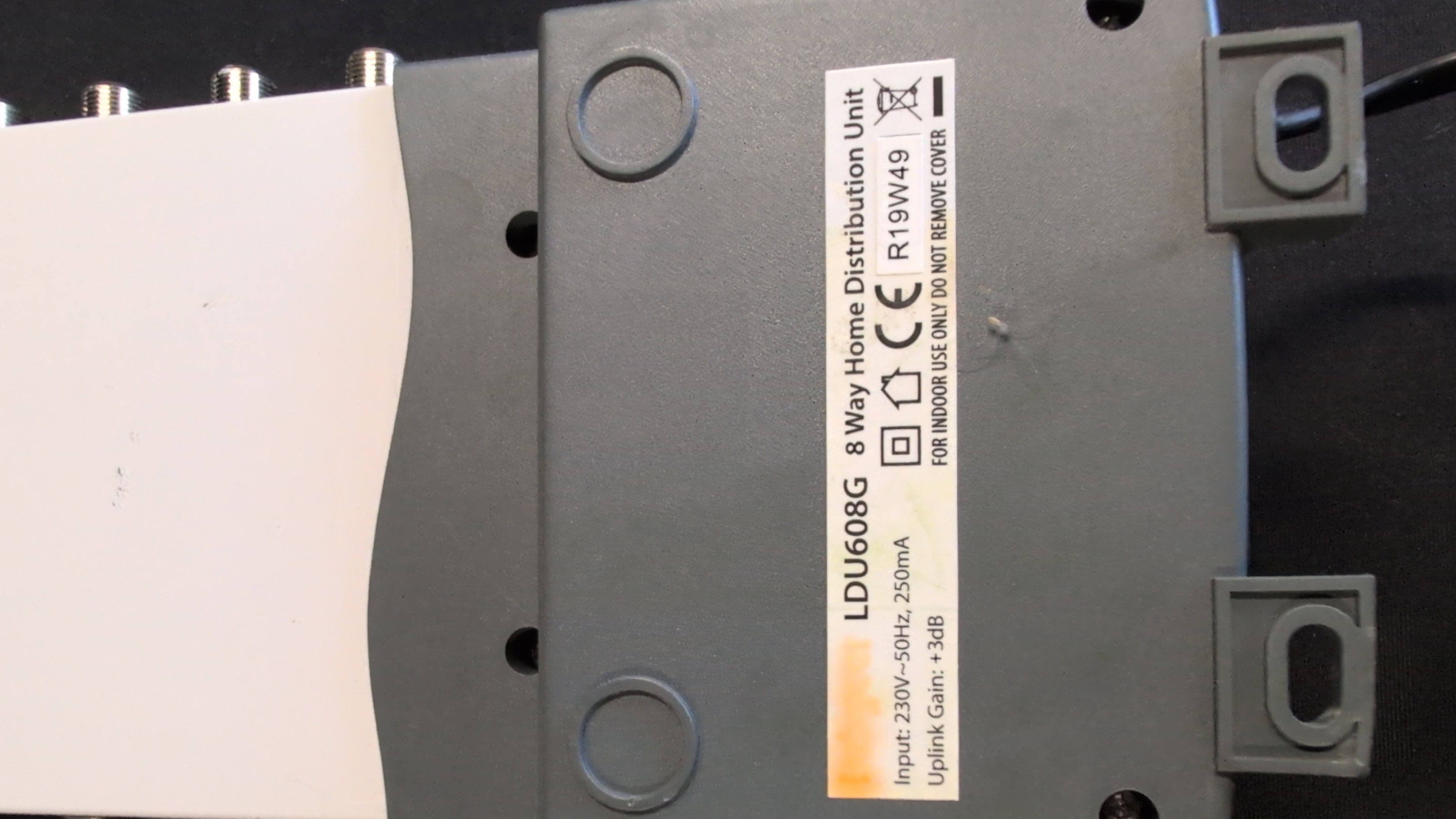

The front interface features a SAT / UHF and CCTV selector switch and an LNB power indicator LED. The identification label on the reverse is transcribed as: LDU608G 8 Way Home Distribution Unit, Input: 230V~50Hz, 250mA, Uplink Gain: +3dB, and R19W49.
